Pipe Sliding Support

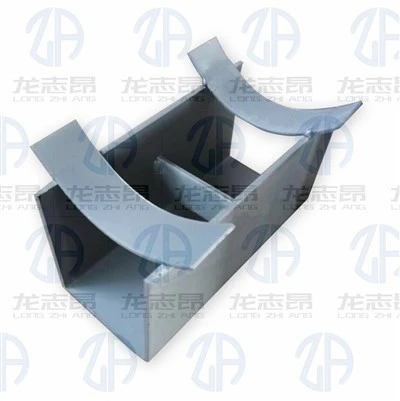

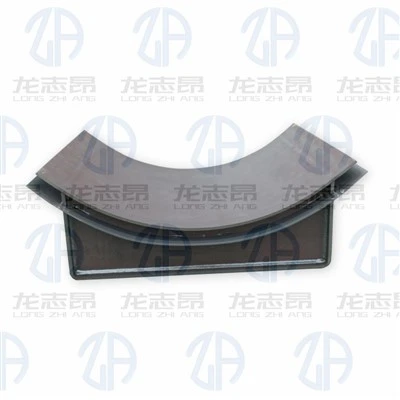

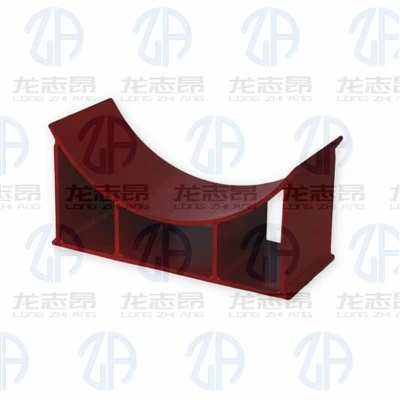

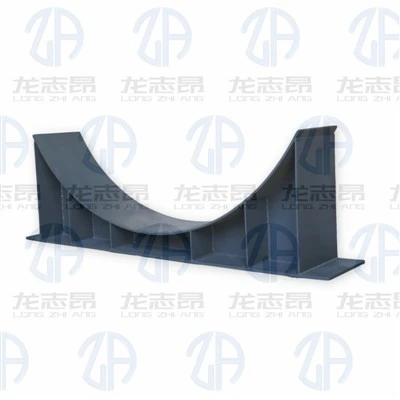

The curved groove is a key component of the support. It is typically precision-machined from wear-resistant materials (such as stainless steel or bronze) to create a specific curved shape, providing a stable sliding surface for the pipe.
Description
pipe sliding support is a type of pipe support, primarily used to support the pipe and allow for a certain amount of displacement.
PRODUCT PARAMETERS
|
Material |
Q235B / Q345B / Stainless steel 304/316, etc. |
|
Surface treatment |
Painted / Hot-dip galvanized / Stainless steel (natural finish) |
|
Support method |
The pipe can slide along the support surface, allowing for thermal expansion and displacement. |
|
Maximum sliding displacement |
±20mm (adjustable according to design) |
|
Installation method |
The support base is fixed with bolts, and the pipe is supported by a sliding plate. |
|
standard |
GB / HG / ASME(As required by the project) |
|
Features |
It can compensate for thermal expansion of pipes, reduce pipe stress, and is easy to install. |
Structure:
The curved groove is a key component of the support. It is typically precision-machined from wear-resistant materials (such as stainless steel or bronze) to create a specific curved shape, providing a stable sliding surface for the pipe.
The slider, typically in direct contact with the pipe or connected via a connector, slides within the curved groove. The slider material must also possess excellent wear resistance and self-lubricating properties; common materials include polytetrafluoroethylene.
The support structure, including the base and ribs, secures the support to the foundation, bearing the weight of the pipe and its contents and transmitting force to the foundation. The base is typically constructed of welded steel plates or cast steel, while the ribs enhance the strength and stability of the support structure.
Connecting components, such as bolts and nuts, connect the slider to the pipe and secure the support structure to the foundation.
FEATURES
Strong displacement compensation capability
The special curved design allows the slider to slide more flexibly within the groove, adapting to pipe displacement in multiple directions. This effectively compensates for pipe displacement caused by thermal expansion, contraction, vibration, and other factors, ensuring safe operation of the pipeline system.
Low friction
The slider and the curved groove typically have a low coefficient of friction, which reduces resistance during pipe sliding and energy loss during operation. It also reduces wear and heat generated by friction, extending the bearing's service life.
High load-bearing capacity
Through the rational design of the support structure and the size and shape of the curved groove, the curved groove sliding bearing can withstand significant pipe weight and loads, making it suitable for supporting a variety of large-diameter, heavy-loaded pipelines.
Excellent stability
The support structure provides a stable foundation for the bearing, ensuring it does not tilt or wobble when subjected to pipe loads and displacement, thus ensuring the stability of the pipeline system.
APPLICATION AREAS
Industrial Piping: Support and thermal expansion compensation for steam, cooling water, and process pipelines within industrial plants.
Chemical and Petrochemical Plants: Sliding supports for pipelines in reactor areas, storage tank areas, and plant facilities.
Power and Energy Facilities: Sliding supports for boiler rooms, turbine rooms, and thermal pipelines.
Steel Structure Pipe Supports: Mobile pipe supports in industrial plants and equipment pipe racks.
CUSTOMIZATION SERVICES
Solution and Design Customization
Based on your pipeline temperature, load, displacement, and installation environment, Zhiang Company's technical team will conduct mechanical analysis and provide optimized solutions and manufacturing drawings, including pipe sliding support structure selection (sliding/guiding/fixed), material combinations, and insulation design.
Product Manufacturing and Performance Customization
Product dimensions and structure are manufactured entirely according to your pipe diameter, space constraints, and support method; main materials (carbon steel/stainless steel) and surface treatment (corrosion resistance level) can be specified according to working conditions.
Using the company's universal testing machine, friction testing machine, and other equipment, load and friction coefficient tests are conducted according to the agreement, and reports are provided.
Packaging and Delivery Customization
According to your transportation distance (especially for export sea freight) and storage conditions, customized solutions are provided, ranging from standard anti-rust packaging to heavy-duty fumigated wooden crates, ensuring the products are delivered to the site in perfect condition.
OUR FACTORY
Founded in 2017, the company has a registered capital of 60 million RMB, a 40,000 square meter production base, and over 300 employees. It is equipped with 5 large laser cutting machines and 6 automated painting lines, specializing in the production of various pipe supports, sliding supports, and special pipe hangers.
production workshop
production equipment
Testing equipment
